MIPI Monitoring Board

SVM-MIPI
SVM-MIPI

■ Overview

   SVM-MIPI is a MIPI monitoring board for recording and displaying video signals of MIPI interface. This board can output the signals to HDMI monitors or UVC (USB3.0 / PC).
   This board can be connected with a camera module by using a SerDes board or a connection-board. Power supply to the SVM-03 board is via USB 3.0 connector. Without a computer, a USB-AC adapter can be used instead.
   In addition, the multi-boot function allows for various functions such as side by side image output with simultaneous input of two sensors and synchronized input using multiple SVM-MIPI boards.    This board adopt UVC as PC driver, so supports not only the Windows environment but also the LINUX environment.
■ Related Product
■ Characteristics
   • MIPI CSI-2 supports 1Gbps / lane
• Output to USB3.0 (UVC) or HDMI
• Compatible with 4Gbps automotive deserializer

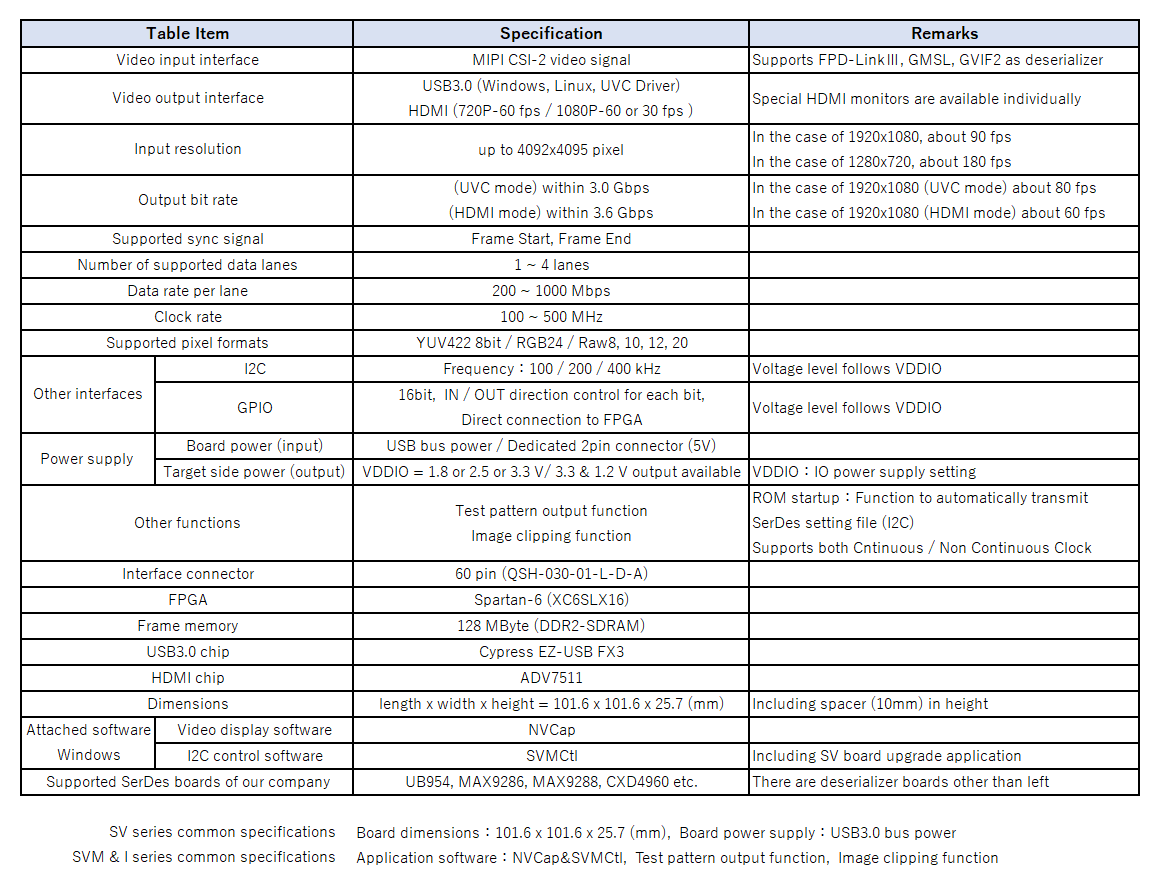

■ Specification
specification_SVM-MIPI
■ Design document　
SVM-MIPI Hardware Specification (PDF）
SVMCtl Software Manual (PDF)
NVCap Software Manual (PDF)
■ Uses / Examples of a track record
Camera modules, Output of CMOS sensor images to HDMI monitor,
Around view development, Simultaneous monitoring of multiple sensors.
■ Industries of using frequently
Automotive / transportation equipment, medical testing / analysis / measurement, IT / information / communications, software, education / research institutions, and so on

Notes: Product names and company names are trademarks of each companies.
These data may be changed without a preliminary announcement for specification change.
