SerDes Interface Board
English > SerDes Board
   These boards are used in combination with our SV series boards and convert automotive camera video signals such as TI's FPD-Link III, Analog Devices (formerly Maxim) GMSL, and Sony's GVIF2 to MIPI or parallel. The product numbers of these boards are determined based on the Product Number Rule.


Configuration Example

 Mounted IC Product Number Hardware Specification
FPO-913A-F Configuration Example DS90UB913A FPO-913A-F Hardware Specification
FPO-953-F Configuration Example DS90UB953 FPO-953-F Hardware Specification
FPI-914A-F Configuration Example DS90UB914A FPI-914A-F Hardware Specification
FPI-934-F Configuration Example DS90UB934 FPI-934-F Hardware Specification
FPI-954-HF Configuration Example DS90UB954 FPI-954-HF Hardware Specification

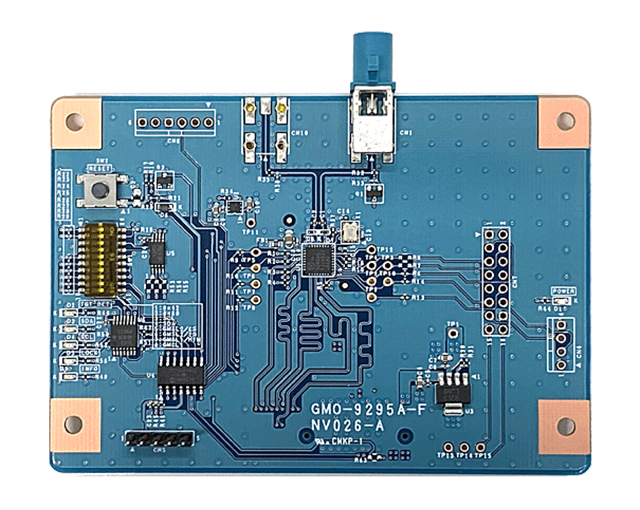

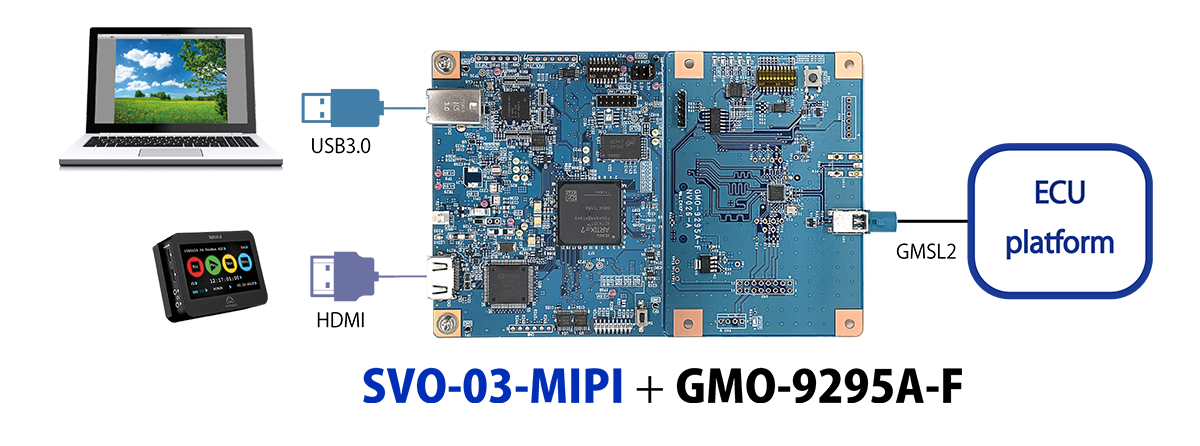

GMO-9295A-F Configuration Example MAX9295A GMO-9295A-F Hardware Specification

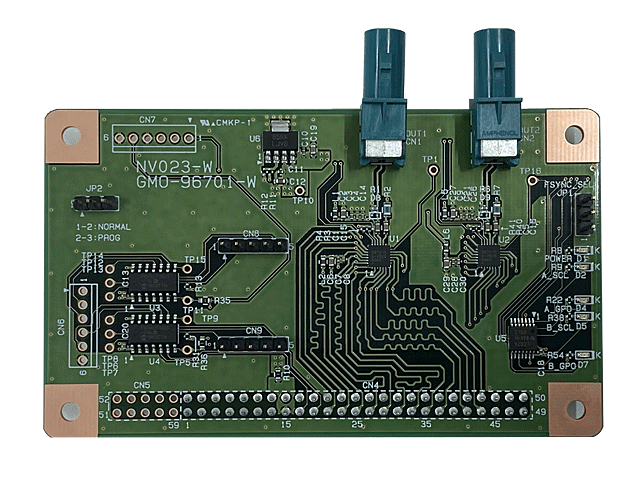

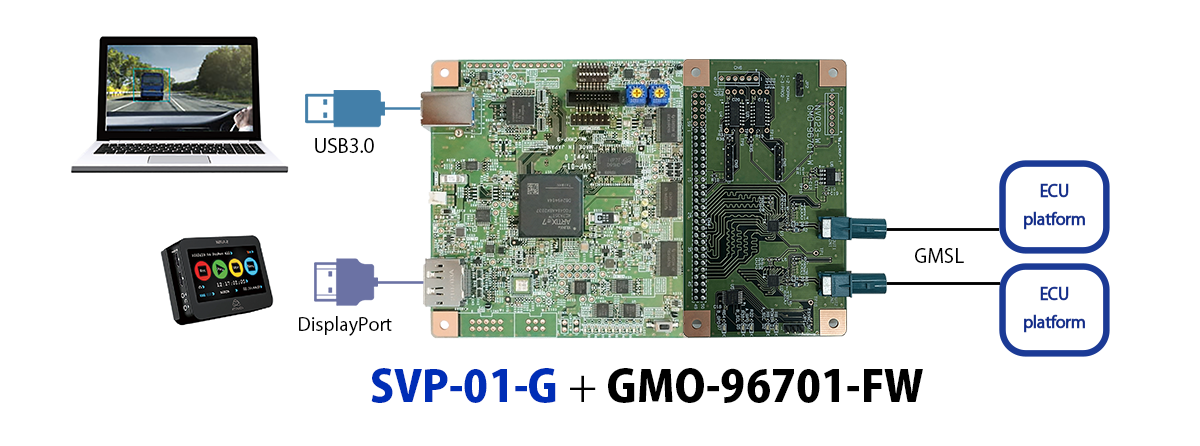

GMO-96701-FW Configuration Example MAX96701 ｘ2 GMO-96701-FW Hardware Specification
GMO-96707-F Configuration Example MAX96707 GMO-96707-F Hardware Specification
GMI-9288-F Configuration Example MAX9288 GMI-9288-F Hardware Specification
GMI-9296A-F Configuration Example MAX9296A GMI-9296A-F Hardware Specification
GMI-96706-F Configuration Example MAX96706 GMI-96706-FH Hardware Specification
GVO-4963-F Configuration Example CXD4963 GVO-4963-F Hardware Specification
GVO-4963-F Configuration Example CXD4963 GVO-4963-M Hardware Specification
GVI-4960-F Configuration Example CXD4960 GVI-4960-F Hardware Specification
GVI-4960-F Configuration Example CXD4960 GVI-4960-M Hardware Specification
※ These are built to order products.
