MIPI Generator
SVO-06

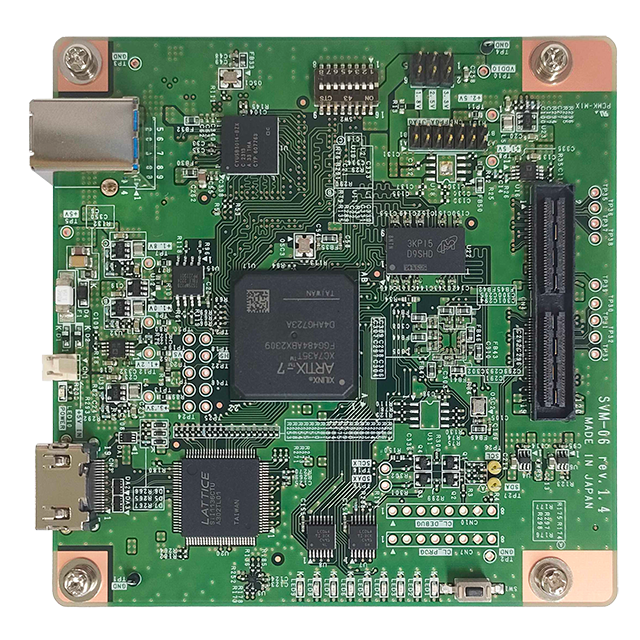

The MIPI Generator SVO-06 is a camera emulation board that converts and outputs video signals input via USB3.0 into MIPI CSI-2 video signals.
It allows you to output recorded video on a PC or CG video to image processing devices such as ECUs, as if it were video from an actual CMOS image sensor. Users can adjust the video output timing, enabling the emulation of various MIPI cameras.
This board can support the development of the image processing device(s), even if the target camera is still under development.
Characteristics
- Supports MIPI CSI-2 up to 1.5Gbps/lane

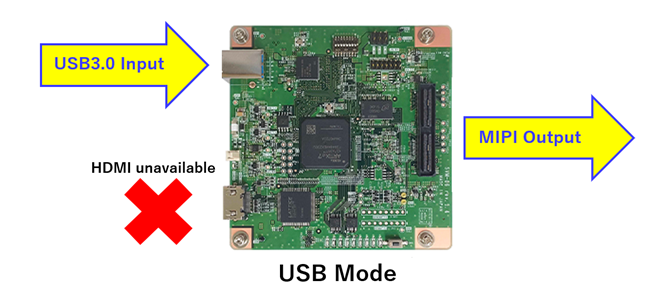

- Input from USB3.0
- Supports 6Gbps automotive serializer
- Optional Feature
└ Merge MIPI video：
By using multiple SVO-06, it is possible to combine video of different sizes and output them as a single MIPI video.

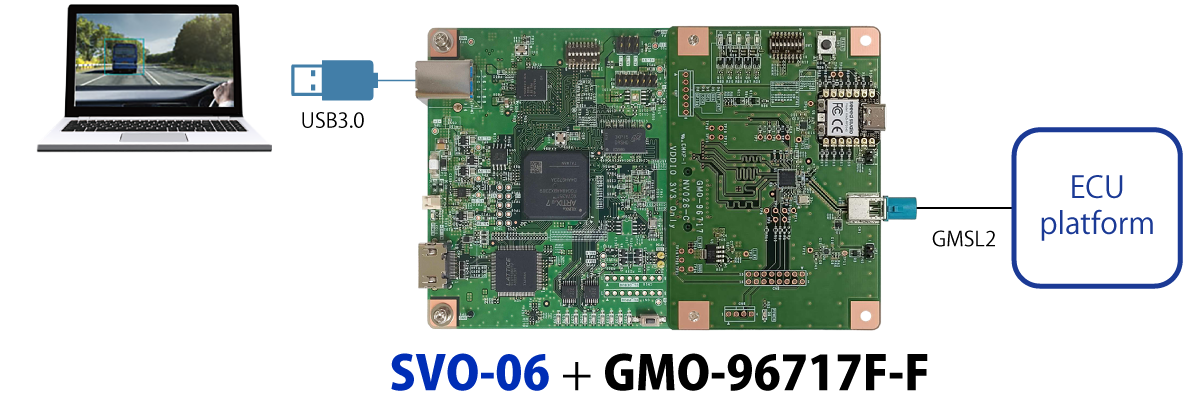

Configuration Example
Specification
| Table Item | Specification | Remarks | |
|---|---|---|---|
| Video Input Interface | USB3.0 (Windows) | ー | |
| Video Output Interface | MIPI CSI-2 video signal | Supports FPD-Link III, GMSL, GVIF as serializer | |
| Input Resolution | Max. 8190x4095 pixel | 1920x1080 in USB mode: Approximately 80fps | |
| Output Bit Rate | Within 6.0 Gbps | ー | |
| Supported Sync Signal | Frame Start, Frame End, Line Start, Line End | ー | |
| Number of Supported Data Lanes | 2, 4 lanes | 1, 3 lanes are not supported. | |
| Data Rate Per Lane | 400 ～ 1500 Mbps | ー | |
| Clock Rate | 200 ～ 750 MHz | ー | |
| Supported Pixel Formats | YUV422 8bit / RGB24 / Raw8, 10, 12, 16, 20 |
ー | |
| Other Interfaces | I2C | Frequency：100, 200, 400 kHz | Voltage level follows VDDIO |
| GPIO | 16bit, IN/OUT direction control for each bit, Direct connection to FPGA |
Voltage level follows VDDIO | |
| Power Supply | Board power (input) | USB bus power / Dedicated 2pin connector (5V) |
ー |
| Target side power (output) | VDDIO = 1.8 V or 2.5 V or 3.3 V 3.3 V & 1.2 V output available. |
VDDIO ：IO power supply setting | |
| Protection Elements | Fuse 3.15A | ー | |
| Other Functions | Video output timing setting : Pixel clock unit (including blank) |
・Supports Continuous Clock / Non Continuous Clock. ・Supports Virtual Channel 0~3. |
|
| Interface Connector | 120pin (QSH-060-01-L-D-A) | ー | |
| FPGA | Artix-7 (XC7A35T) +CrossLink (LIF-MD6000) |
ー | |
| Frame Memory | 256 MByte (DDR3-SDRAM) | ー | |
| USB | Device Controller | Infineon EZ-USB FX3 | ー |
| Connector | USB3.0 Type-B | ー | |
| HDMI Chip | Sil1136 | HDMI input is not supported. | |
| Dimensions | length x width x height = 101.6 x 101.6 x 25.7 (mm) |
Including spacer (10mm) in height. | |
| Attached Software Windows |
Video output software | NVFilePlayer | ー |
| I2C control software | SVMCtl | Including SV board update application. | |
| Supported Our Serializer Boards |
UB953, CXD4963, etc. | ー | |
