FPD-Link III & GMSL & GVIF（Serial, Parallel, MIPI）
SerDes Interface Board
The SerDes interface boards are compatible with vehicle digital video interfaces (SerDes interface) such as Texas Instruments FPD-Link III, Analog Devices (formerly Maxim) GMSL, Sony GVIF, Valens A-PHY and Microchip Technology ASA.
These boards support serial-MIPI conversion as well as serial-parallel conversion.
Overview

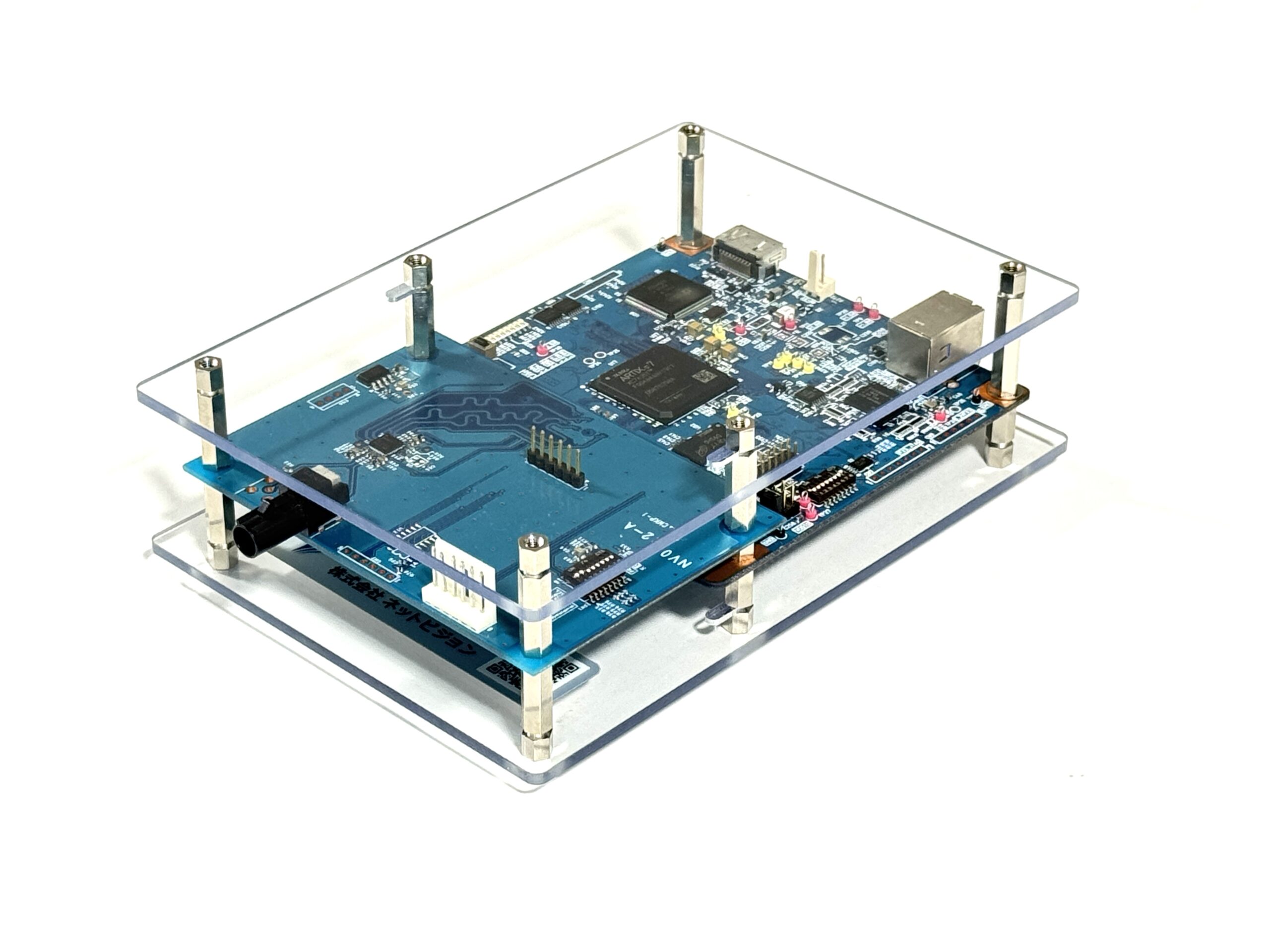

SerDes Interface Board: Option Board for SV series
These boards are used in combination with our SV series boards. They convert the SerDes standard signals to USB(PC), HDMI and DisplayPort, or conversely, the signals from USB(PC), HDMI and DisplayPort to SerDes standards.
In the case of single-ended type, FAKRA connectors are mounted. For the differential type, we will ask customer to specify an implementable connector.
There are many kinds of boards, so we named them according to product number rule.
＊SerDes interface boards are built to order products normally.
Board Examples
SerDes Interface Board Examples

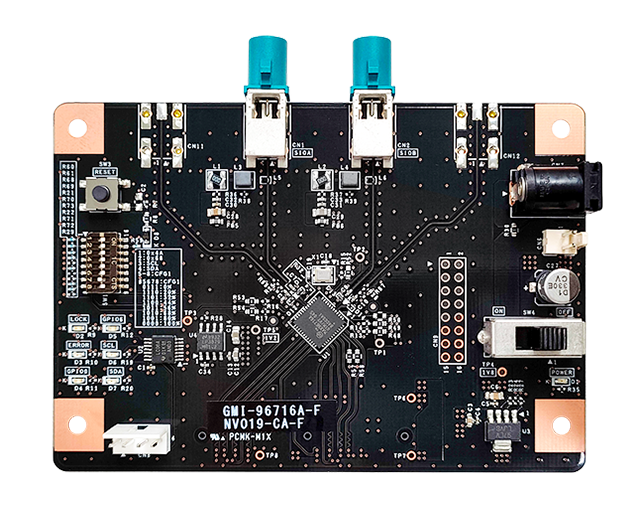

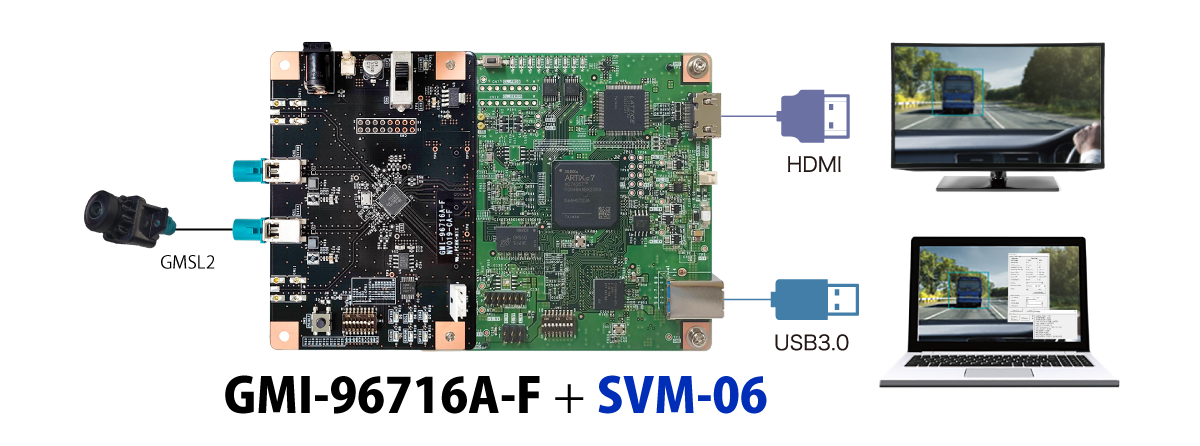

GMI-96716A-F
(Analog Devices MAX96716A)
GMO-96717F-F
(Analog Devices MAX96717F)

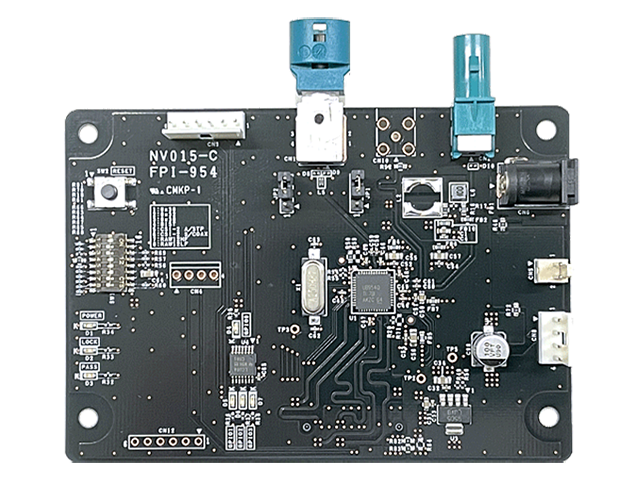

FPI-954-HF
(TI DS90UB954)

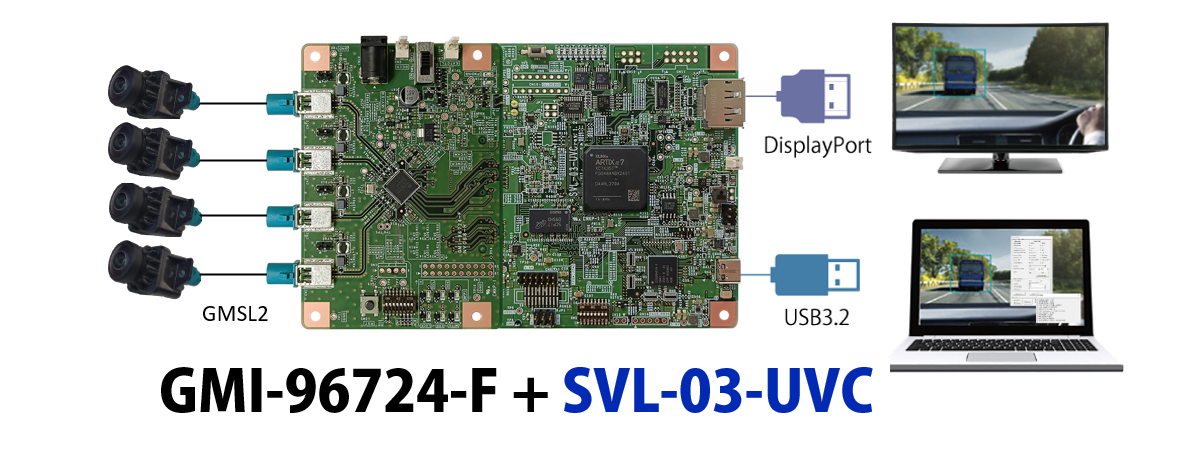

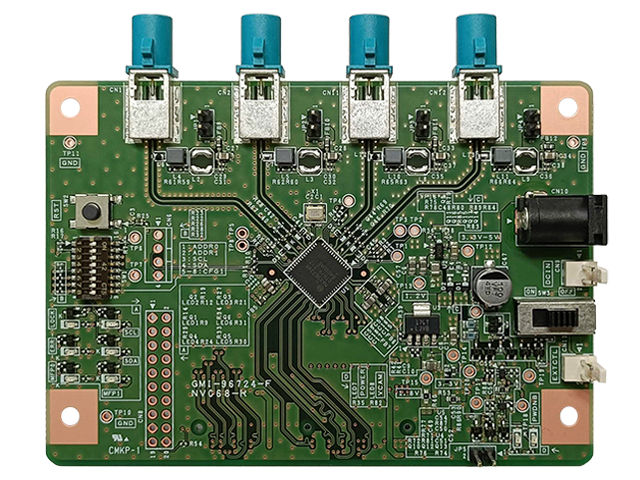

GMI-96724-F
(Analog Devices MAX96724)

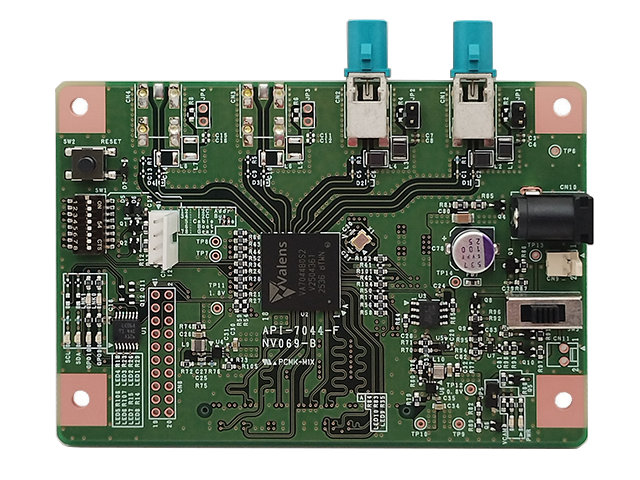

API-7044-F
(Valens VA7044)

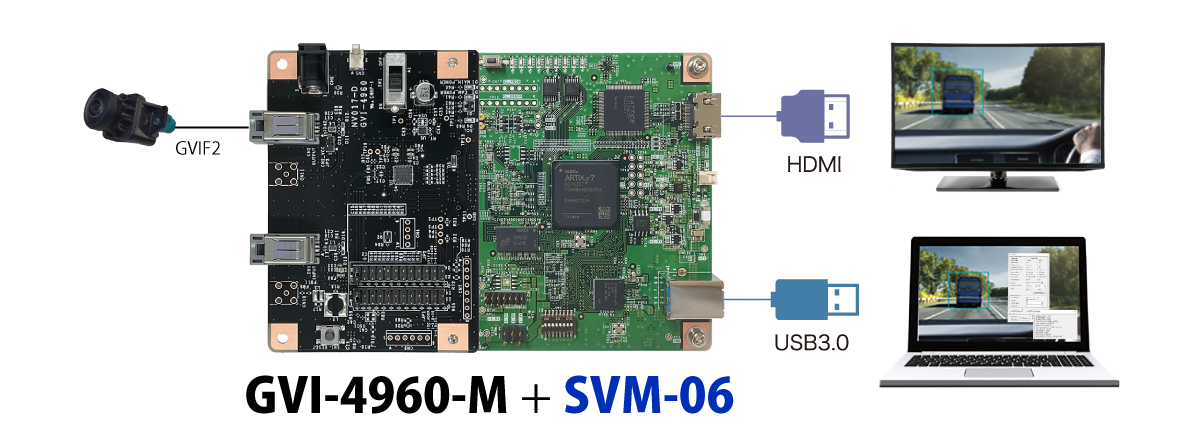

GVI-4960-M
(SONY CXD4960)

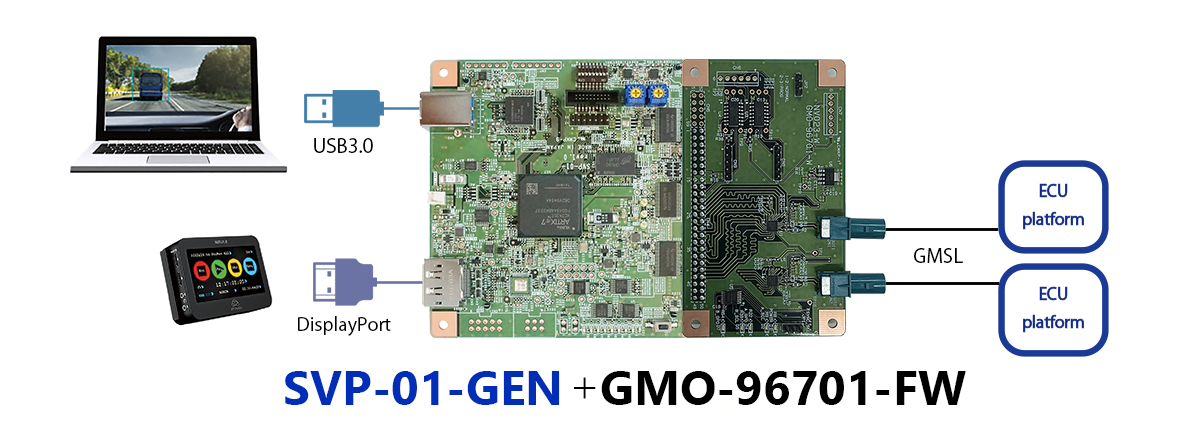

GMO-96701-F
(Analog Devices MAX96701)

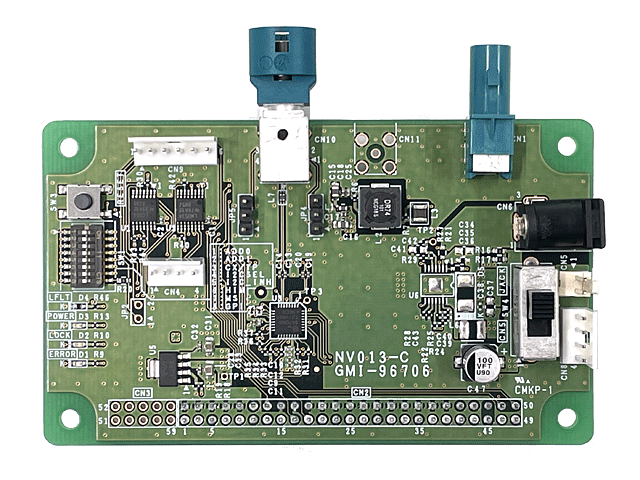

GMI-96706-FH
(Analog Devices MAX96706)

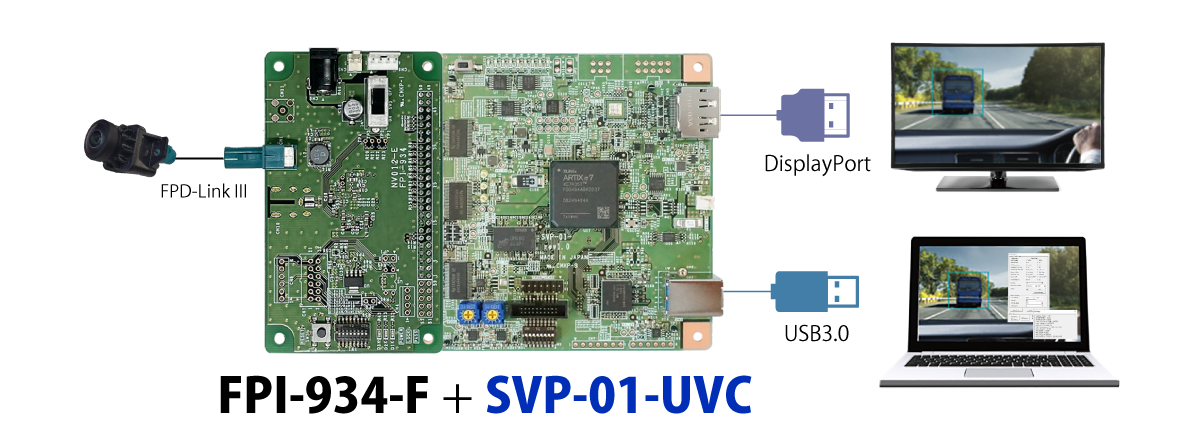

FPI-934-F
(TI DS90UB934)
SerDes Interface Board List
These boards are used in combination with our SV series boards and convert automotive camera video signals such as TI FPD-Link III, Analog Devices (formerly Maxim) GMSL, Sony GVIF, Valens A-PHY and Microchip Technology ASA to MIPI or parallel. The product numbers of these boards are determined based on the product number rule.
FPD-Link III
| Photo | Configuration Example | Mounted IC | Product Number | Hardware Specification | Board Number |
|---|---|---|---|---|---|
 |

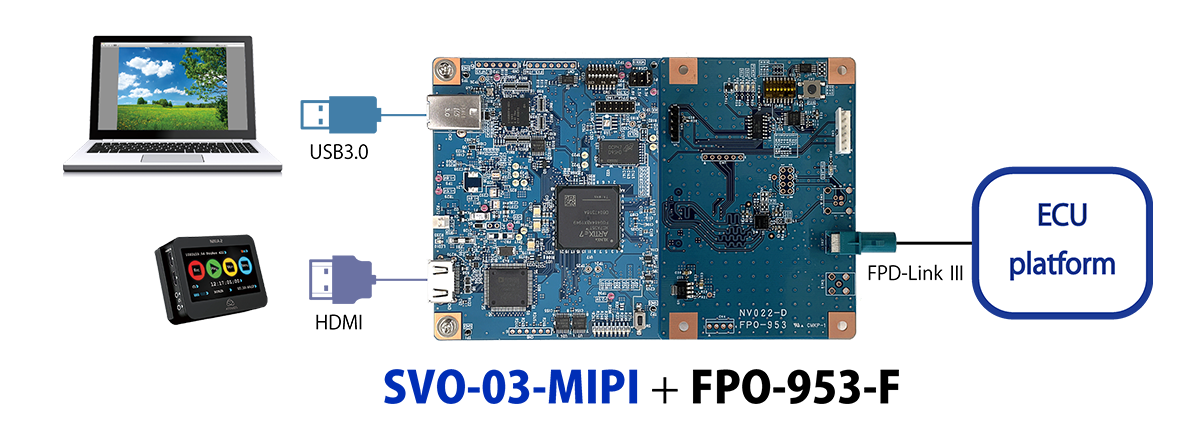

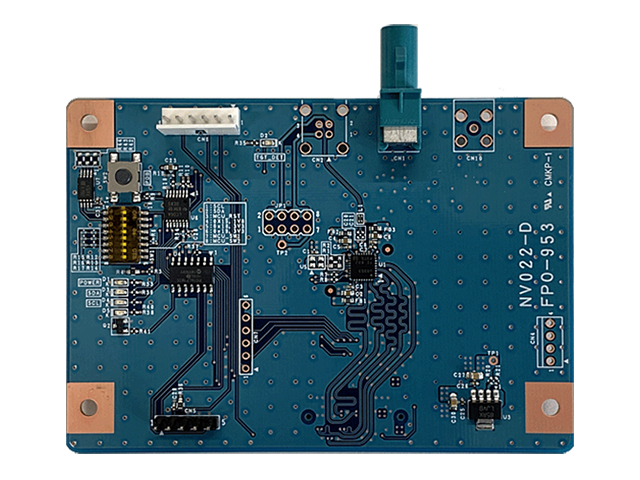

Configuration Example | DS90UB953 | FPO-953-F | Hardware Specification | NV022-D-F |
 |

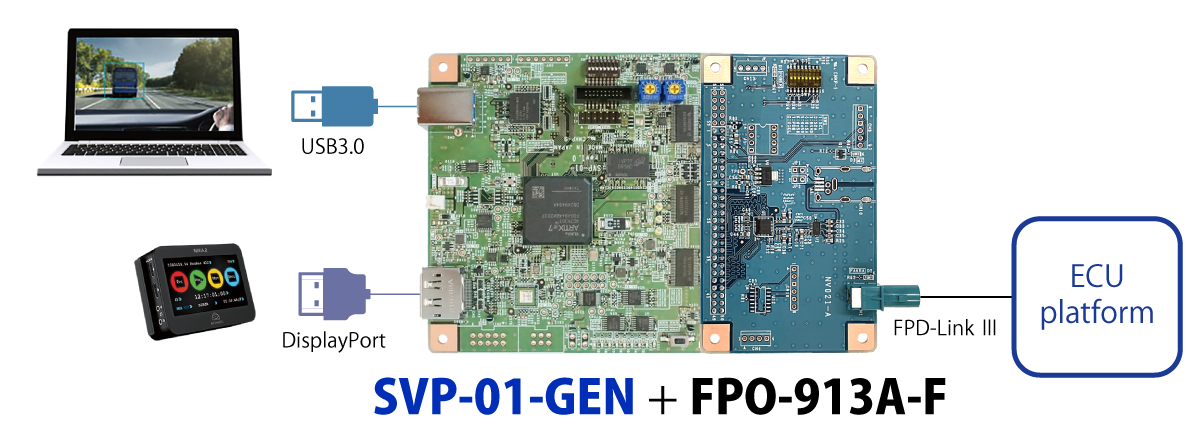

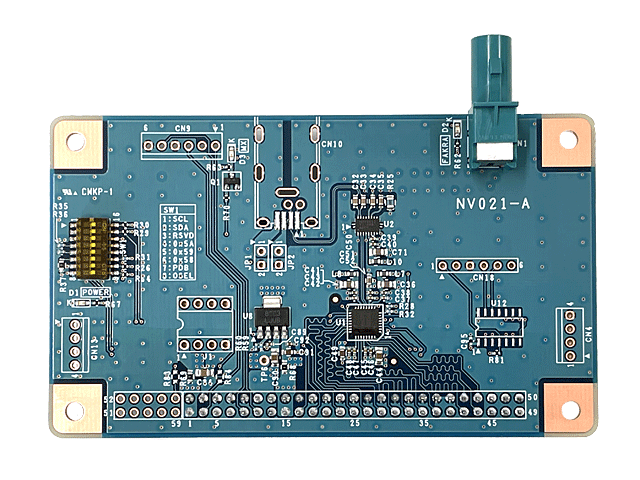

Configuration Example | DS90UB913A | FPO-913A-F | Hardware Specification | NV021-A-F |
|

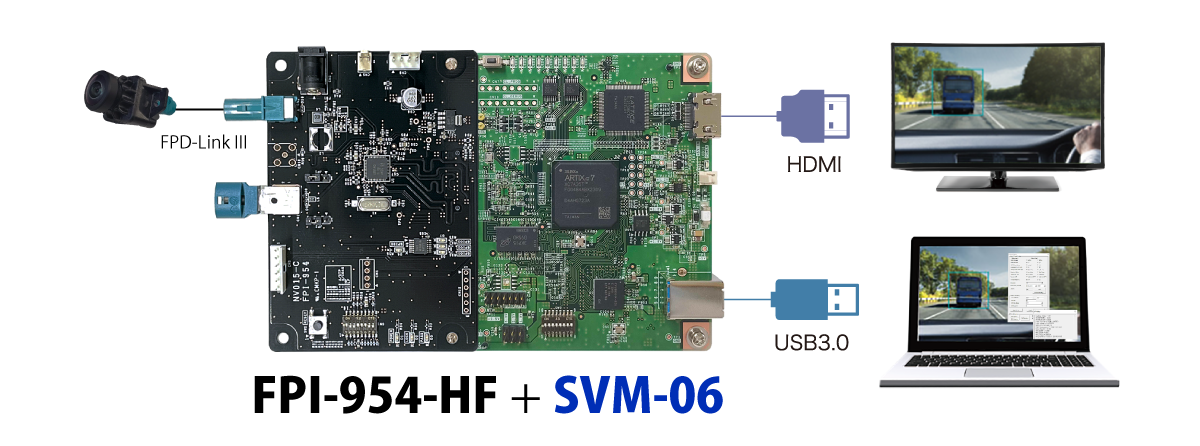

Configuration Example | DS90UB954 | FPI-954-HF | Hardware Specification | NV015-C-HF |
|

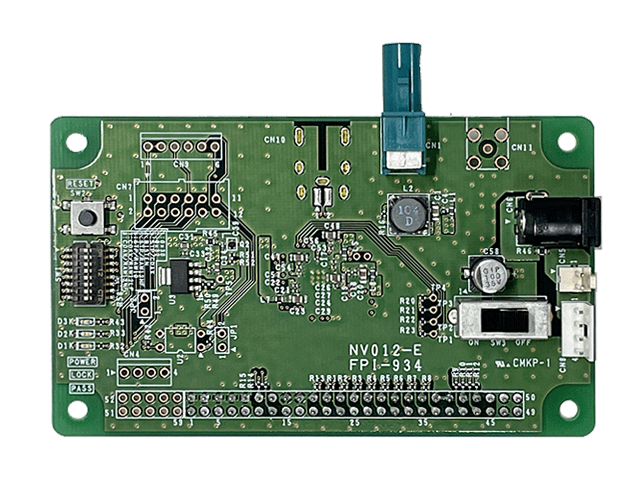

Configuration Example | DS90UB934 | FPI-934-F | Hardware Specification | NV012-E-F |
 |

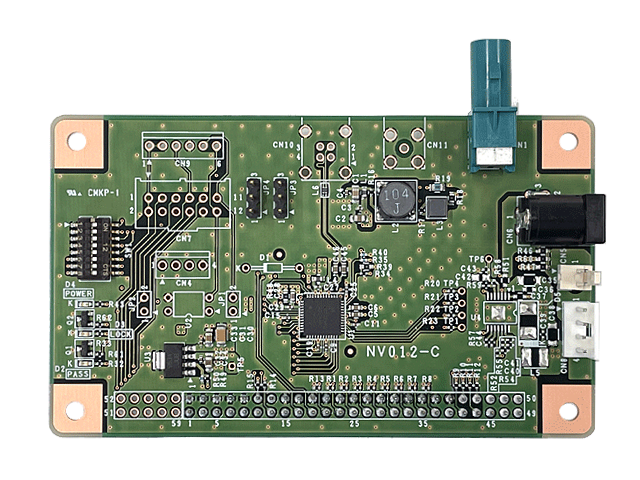

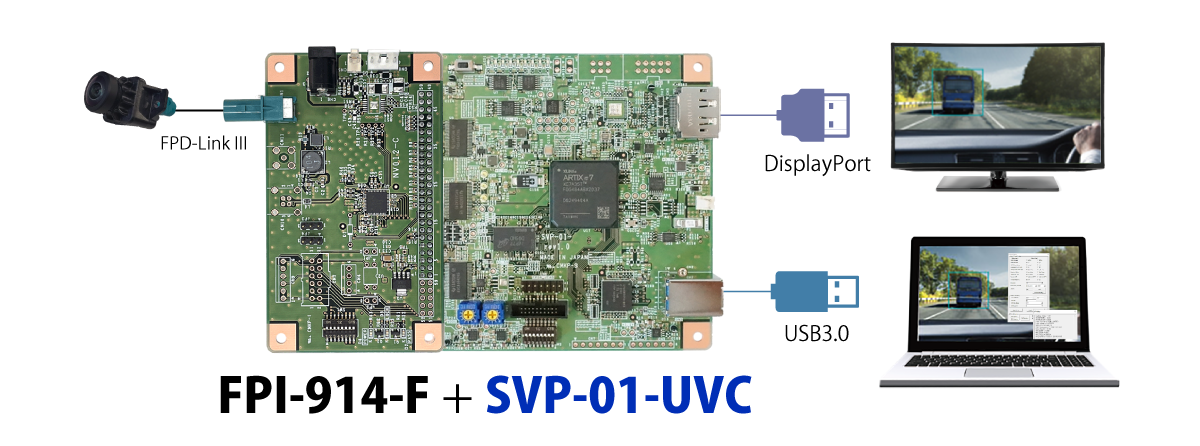

Configuration Example | DS90UB914A | FPI-914A-F | Hardware Specification | NV012-C-F |

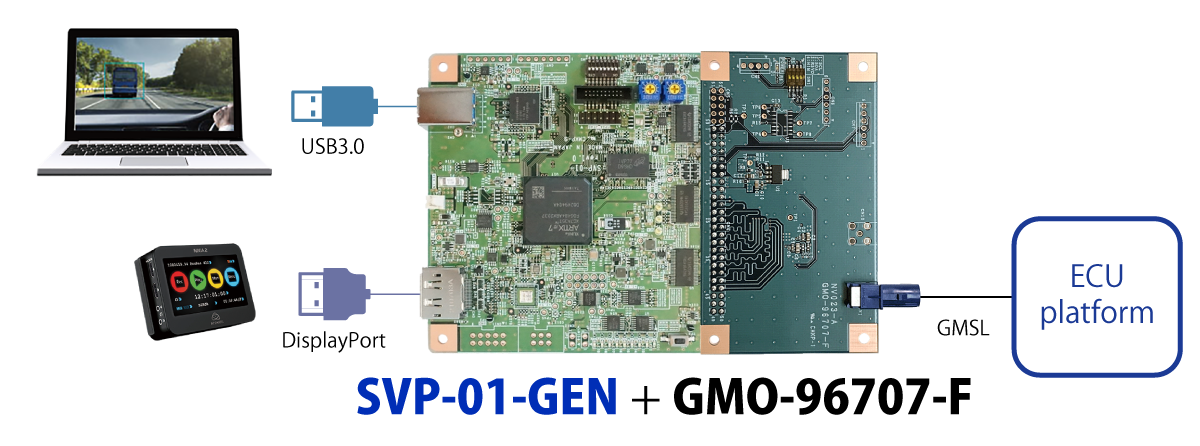

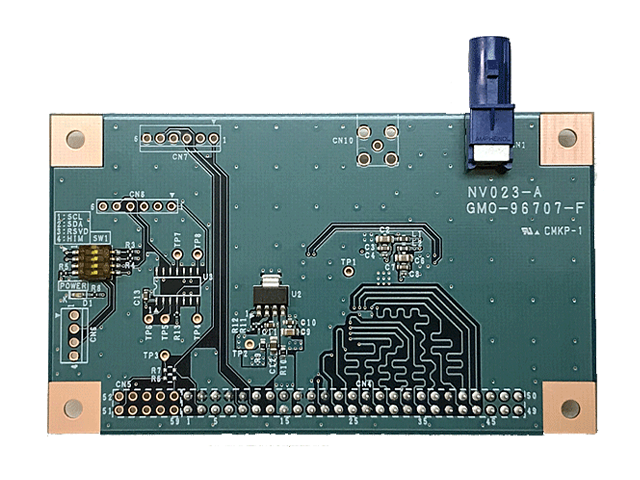

GMSL
| Photo | Configuration Example | Mounted IC | Product Number | Hardware Specification | Board Number |
|---|---|---|---|---|---|
|

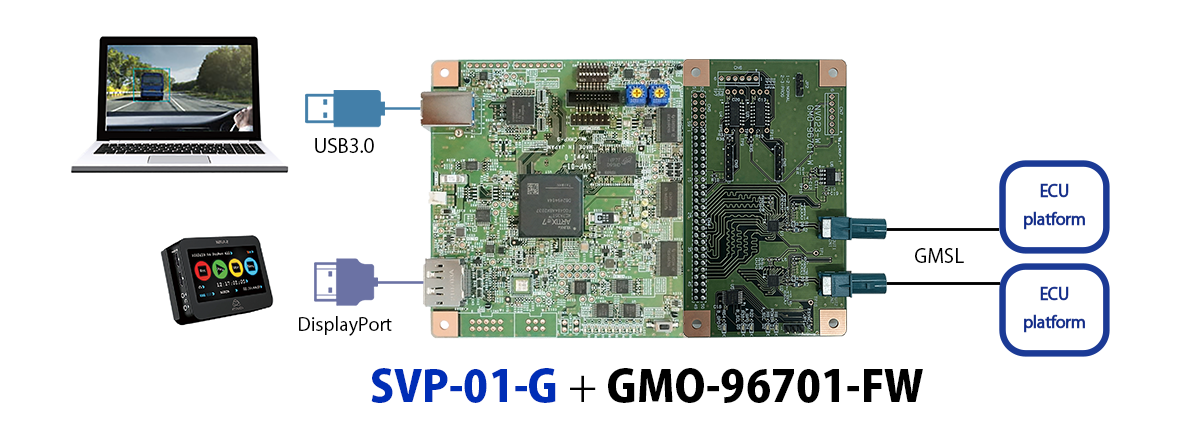

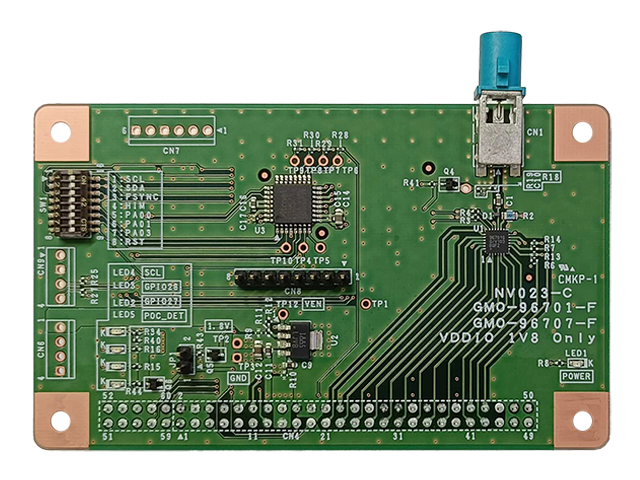

Configuration Example | MAX96701 | GMO-96701-F | Hardware Specification [Japanese Only] |
NV023-C-F |
 |

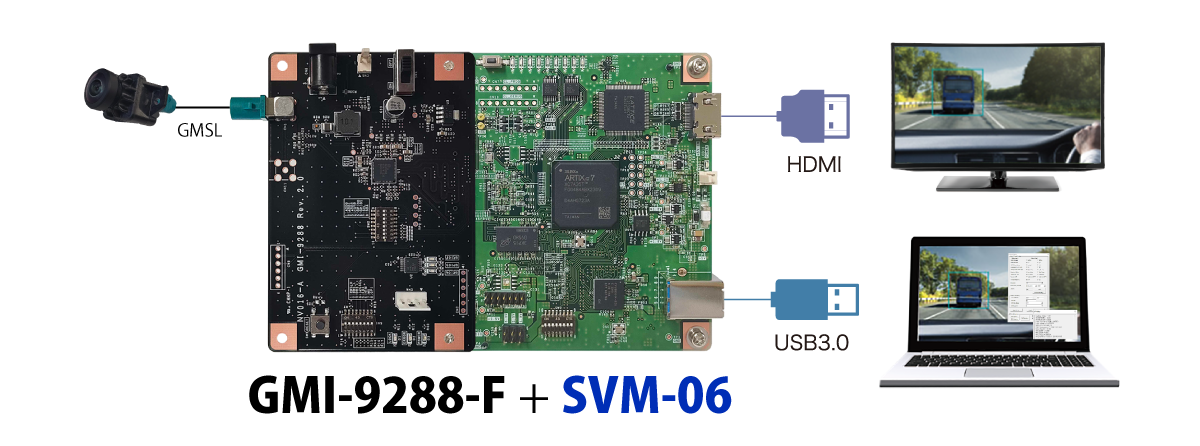

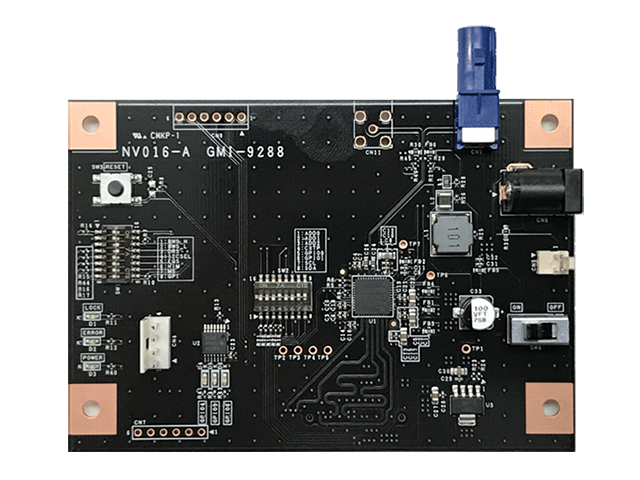

Configuration Example | MAX9288 | GMI-9288-F | Hardware Specification | NV016-A-F |
|
Configuration Example | MAX96706 | GMI-96706-FH | Hardware Specification | NV013-C-FH |

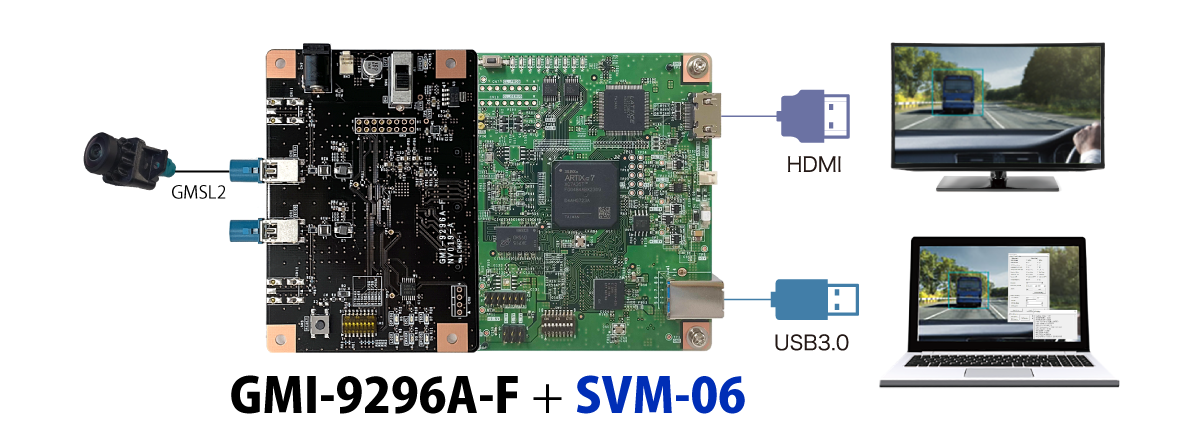

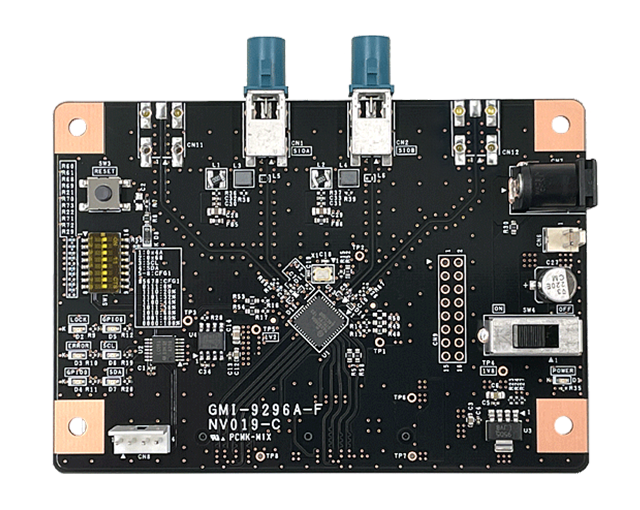

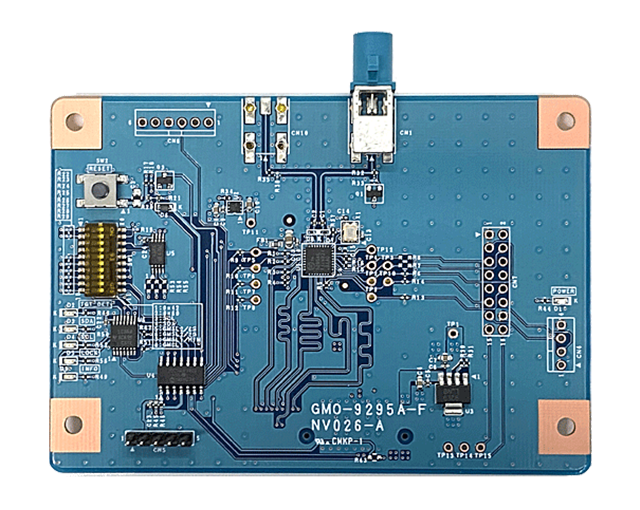

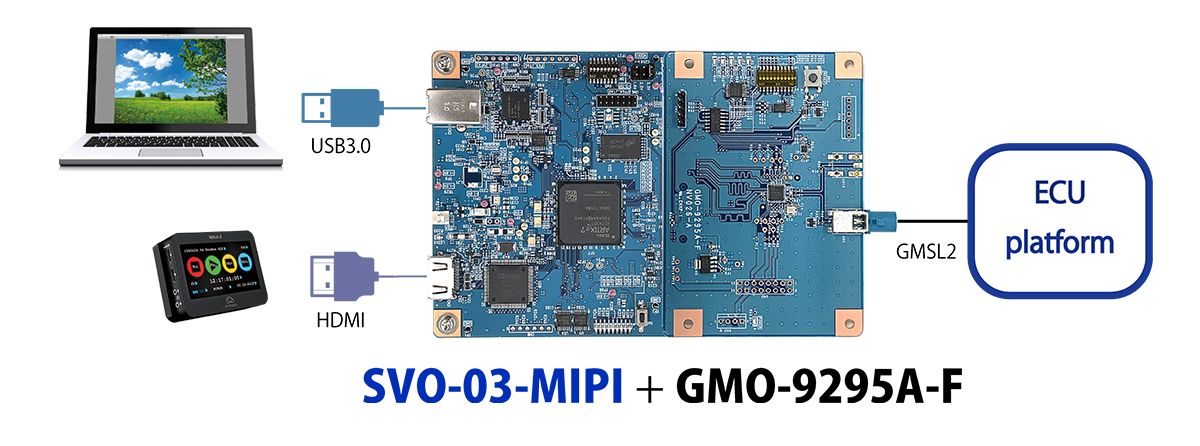

GMSL2
| Photo | Configuration Example | Mounted IC | Product Number | Hardware Specification | Board Number |
|---|---|---|---|---|---|
|
Configuration Example | MAX96717F | GMO-96717F-F | Hardware Specification [Japanese Only] |
NV026-C-F |
|

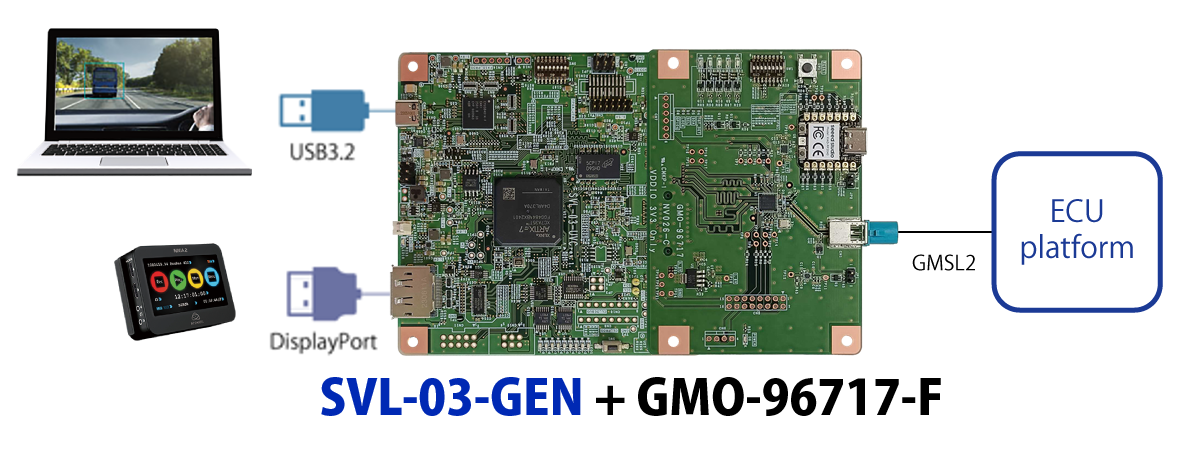

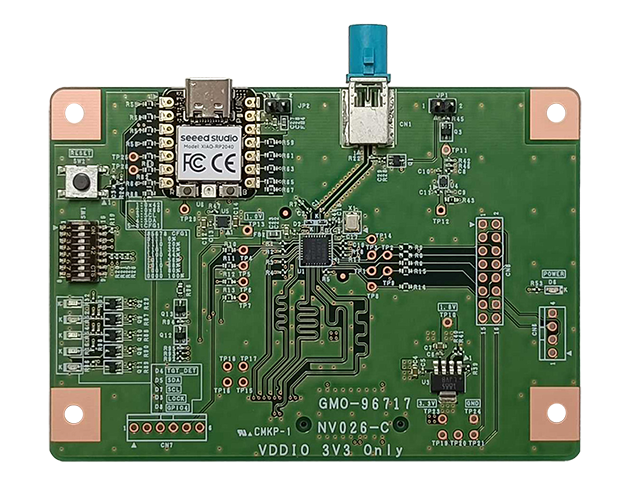

Configuration Example | MAX96717 | GMO-96717-F | Hardware Specification | NV026-C6-F |
 |

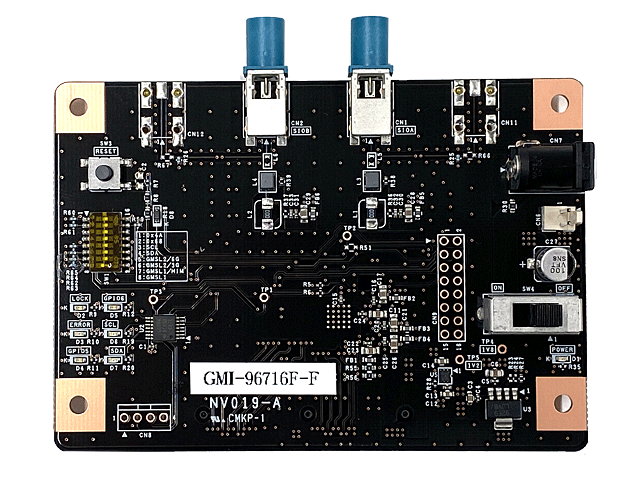

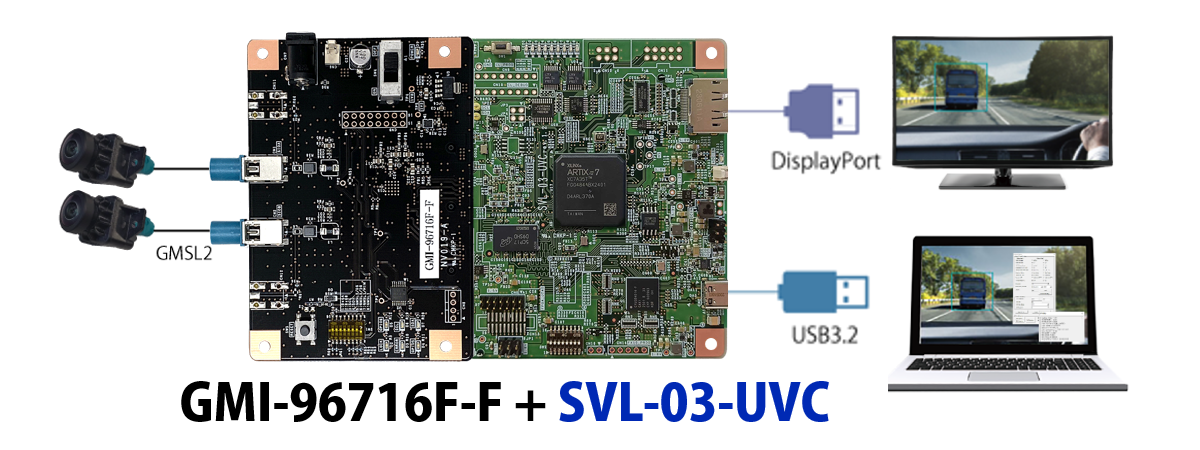

Configuration Example | MAX96716F | GMI-96716F-F | Hardware Specification [Japanese Only] |
NV019-AF-F |
|
Configuration Example | MAX96716A | GMI-96716A-F | Hardware Specification | NV019-CA-F |
|

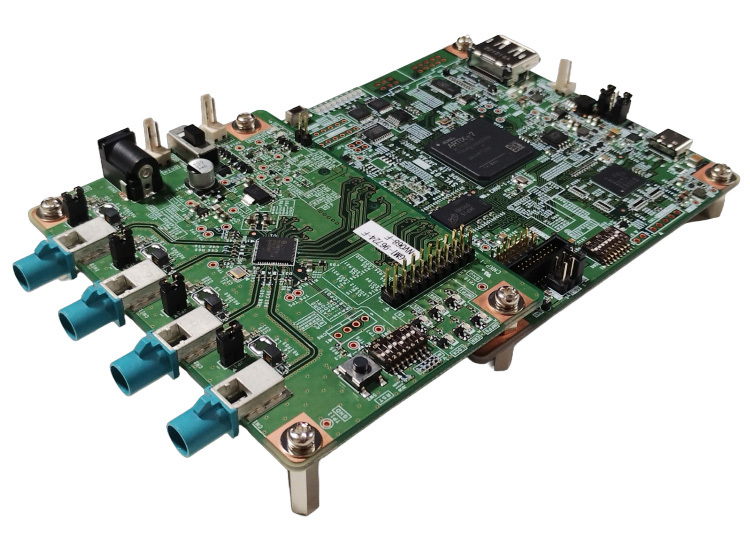

Configuration Example | MAX96724 | GMI-96724-F | Hardware Specification [Japanese Only] |
NV068-F |
 |

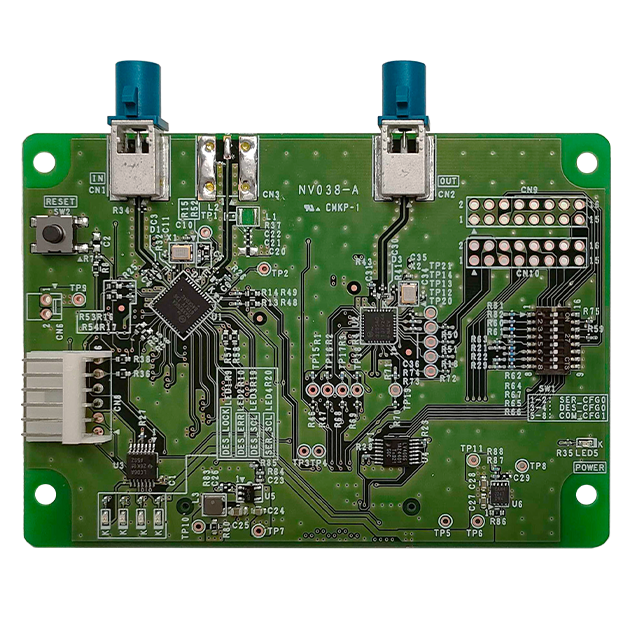

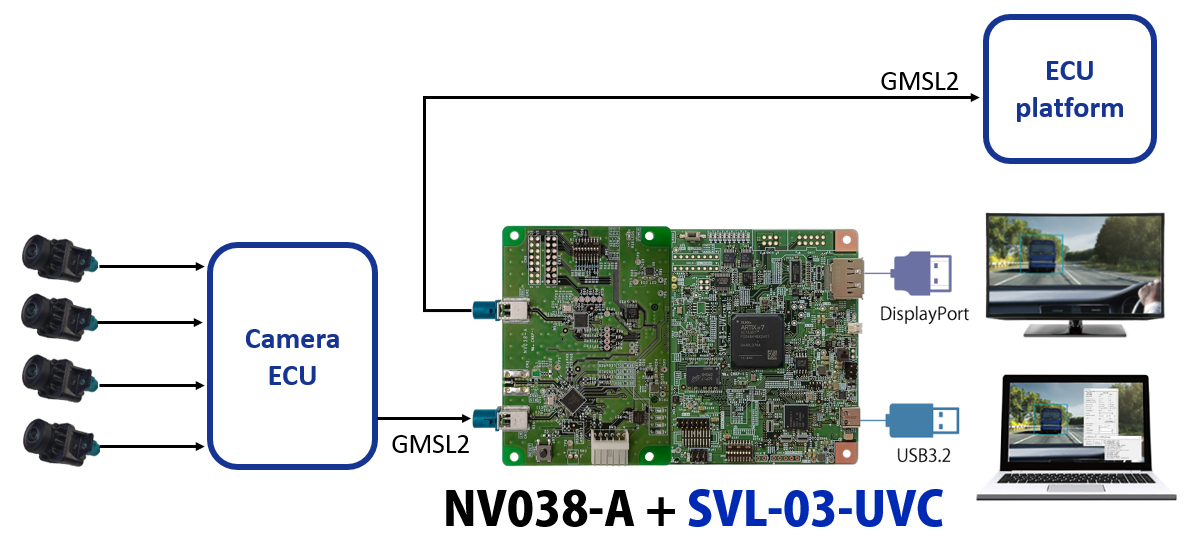

Configuration Example | MAX96716F MAX96717F |
NV038-A | Hardware Specification [Japanese Only] |
NV038-A |
GMSL3
| Photo | Configuration Example | Mounted IC | Product Number | Hardware Specification | Board Number |
|---|---|---|---|---|---|
 |

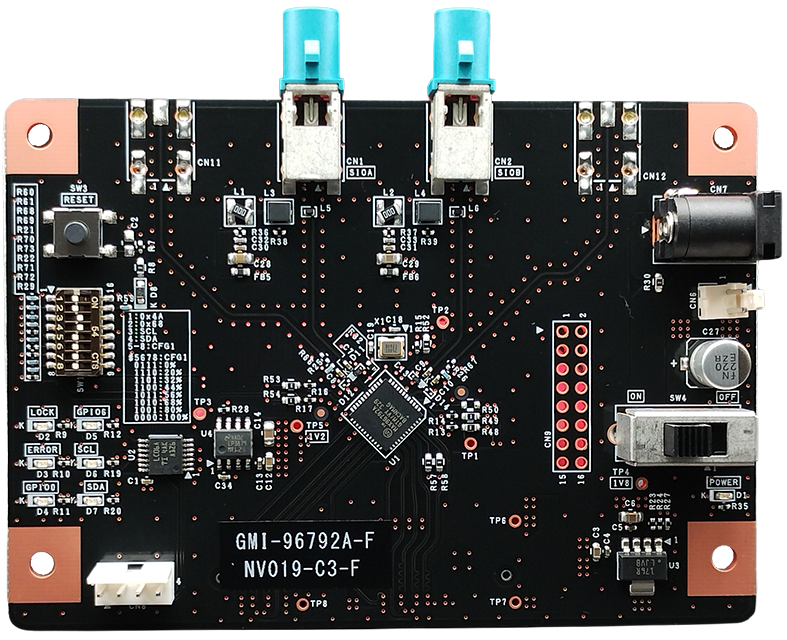

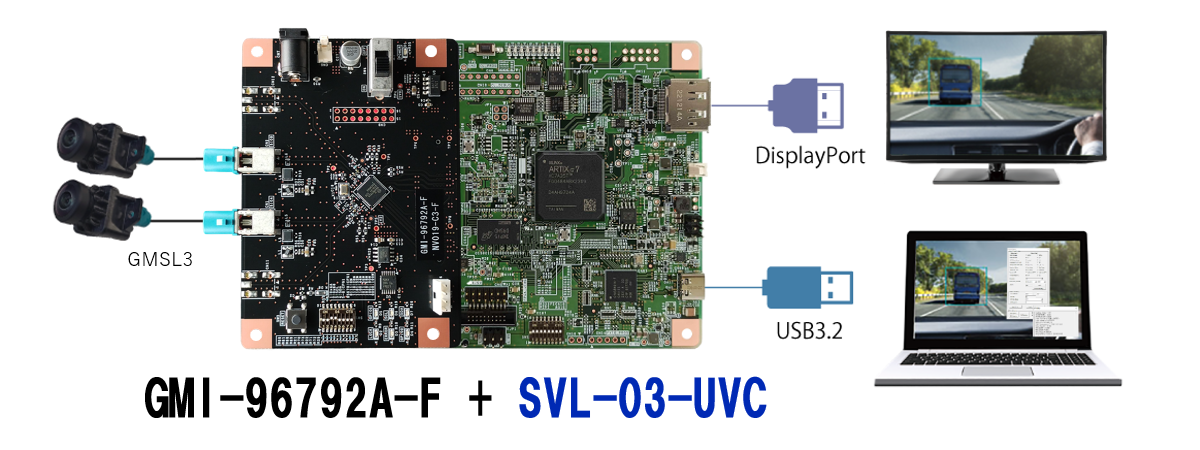

Configuration Example | MAX96792A | GMI-96792A-F | Hardware Specification [Japanese Only] |
NV019-C3-F |
GVIF2
| Photo | Configuration Example | Mounted IC | Product Number | Hardware Specification | Board Number |
|---|---|---|---|---|---|
 |

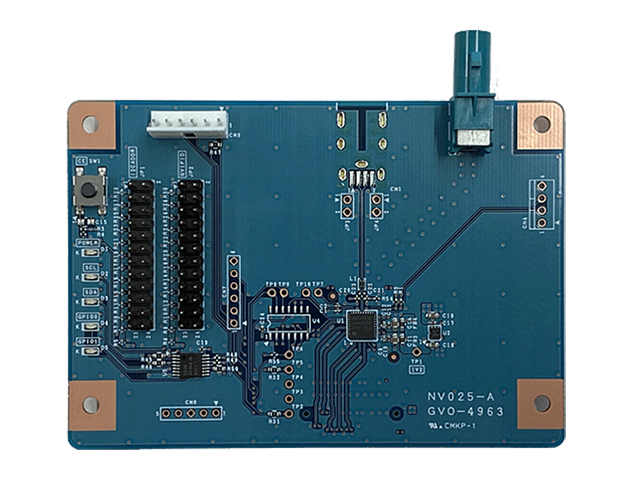

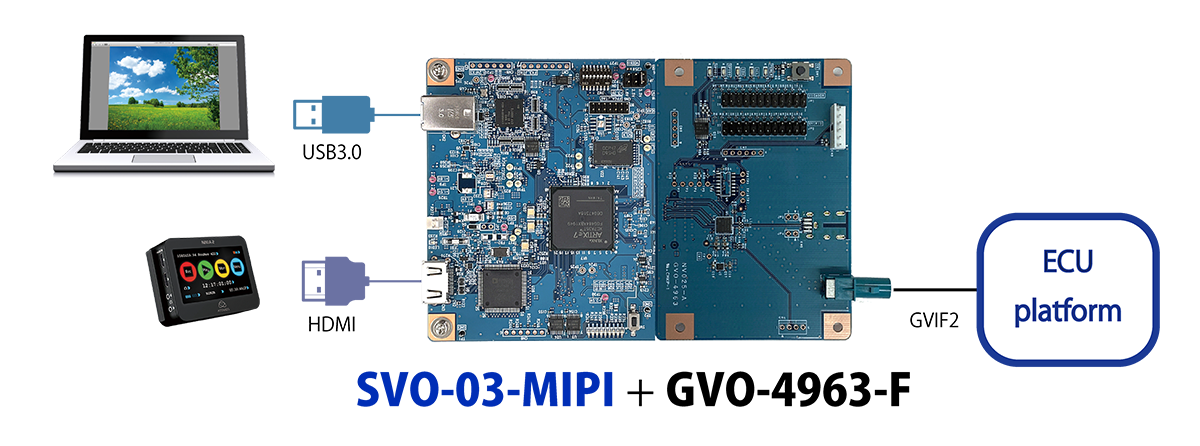

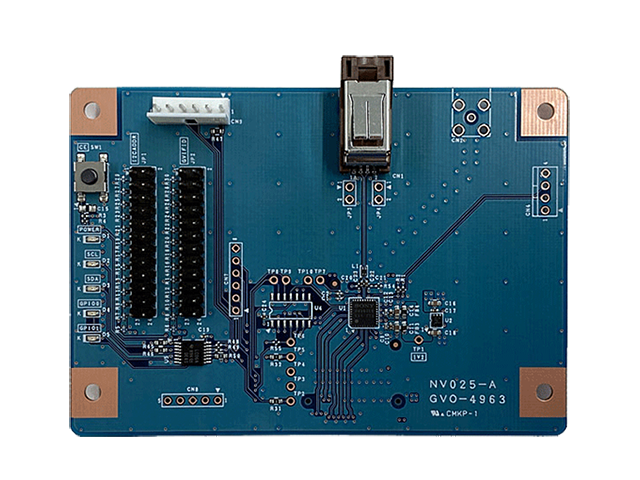

Configuration Example | CXD4963 | GVO-4963-F | Hardware Specification | NV025-A-F |
 |

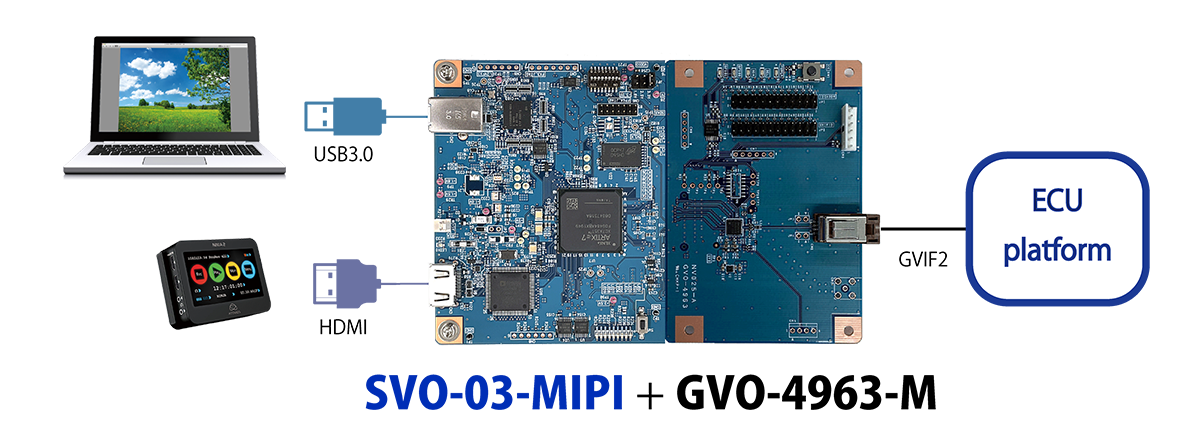

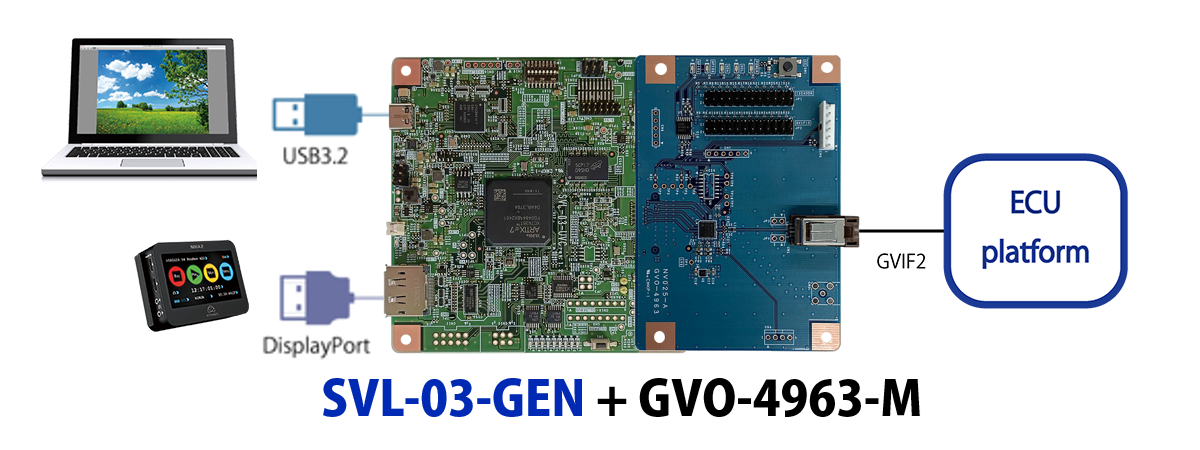

Configuration Example | CXD4963 | GVO-4963-M | Hardware Specification | NV025-A-M |
 |

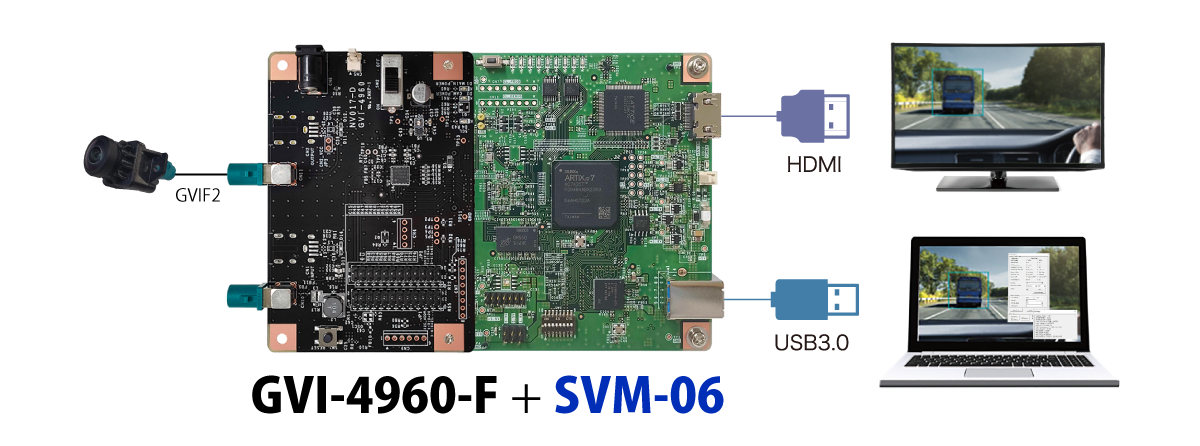

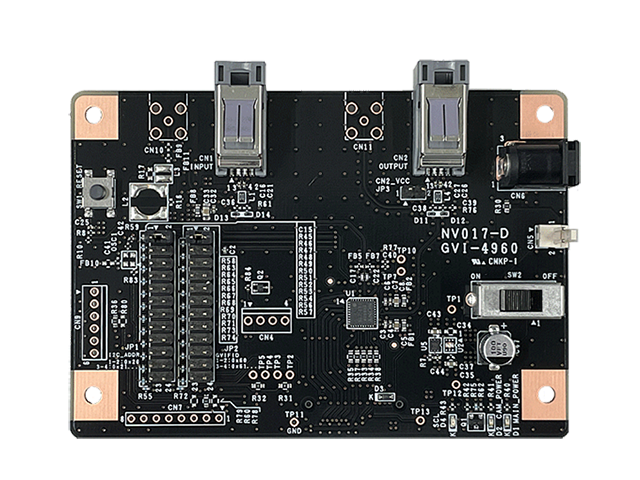

Configuration Example | CXD4960 | GVI-4960-F | Hardware Specification | NV017-D-F |
|
Configuration Example | CXD4960 | GVI-4960-M | Hardware Specification | NV017-D-M |
※These are built to order products.
