Parallel Image Recorder
SVP-01-VND
The Parallel Image Recorder SVP-01-VND is a board for displaying and recording video signals via a parallel interface. It operates in Vendor mode and Updater mode.
In Vendor mode, it is possible to display video histograms, vector scopes, and other analysis using the application provided by our company, allowing real-time video analysis. With I2C communication support, it is easy to control cameras and SerDes.
In Updater mode, the firmware of devices such as onboard microcontrollers or FPGAs can be updated via USB.
Characteristics
- Operates with a vendor-class driver
(Uses our dedicated API and driver) - Supports I2C communication
- Input resolution : Max. 8190x4095 pixels

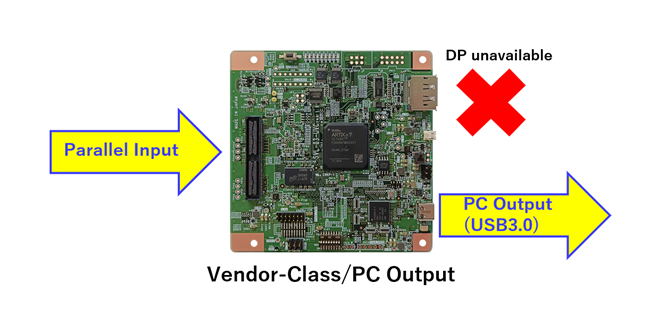

(Clipping of any area is supported) - USB 3.0 output (DisplayPort is not available)
- Powered via USB bus
- A synchronization‑wiring connector can be mounted
(Not provided by default)
Specification
| Item | Specification | Remarks | |
|---|---|---|---|
| Video Input Interface | Parallel video signal | IO voltage = 1.8 V - 3.3 V Supports FPD-Link III, GMSL, GVIF as deserializer |
|
| Video Output Interface | USB3.0 (Vendor) | USB is only supported on Windows. | |
| Input Resolution | Max. 8190 x 4095 pixel | The maximum resolution in 8bit mode is 4094 × 4095. | |
| Output Bit Rate | Within 3.0 Gbps | Operate with Vendor Class | |
| Sync Signal | Vsync, Hsync, Pixel Clock | ー | |
| Clock Rate | ~ 150 MHz | ー | |
| Supported Pixel Formats | YUV422 8bit / RGB24 / Raw | ー | |
| Input Bit Width | 8 / 16 / 24 / 32 bit | Use GPIO pins for 24 and 32 bit | |
| Other Interfaces | I2C | Frequency : 100 / 200 / 400 kHz | Voltage level follows VDDL |
| GPIO | Max. 16bit, IN / OUT direction control every 8bit | Voltage level follows VDDL GPIO + Video input = 32bit max. |
|
| Power Supply | Input Power | USB bus power | Supply voltage：+5V (4.75V - 5.5V) Operating current (typ)：0.72 A |
| Output Power | VDDL = 1.8 V ~ 3.3 V VDDH = 1.2 V ~ 3.6 V 3.3 V output available. |
VDDL：IO power supply setting VDDH：Power supply for connection board |
|
| Other Functions | Image clipping function | ー | |
| Interface Connector | 50pin + 10pin (2.54mm pitch pin header) | An additional 10pin is required for 24bit and 32bit input. | |
| FPGA | Artix-7 (XC7A35T) | ー | |
| Frame Memory | 256 MByte (DDR3-SDRAM) | ー | |
| USB3.0 Chip | Infineon EZ-USB FX3 | ー | |
| Dimensions | length x width x height = 101.6 x 101.6 x 25.7 (mm) |
Including spacer (10mm) in height. | |
| Software (Windows) |
Video Display Software | SVIMon / SVIView | ー |
| I2C Control Software | SVICtl | ー | |
| Supported Our Deserializer Boards | FPI-914A-FH, FPI-934-F, GMI-9272-F, GMI-96706-FH, etc. |
ー | |
Documents
Design Documents
- SVP-01-VND Hardware Specification (TBD)
- SVP-01 IF Schematics (PDF)
Full Package Download
Application
Display video signal of camera modules or CMOS sensors to DisplayPort monitor, Around view development, Simultaneous monitoring of multiple sensors.
Application Areas
Automotive / transportation equipment, medical testing / analysis / measurement, IT / information / communications, software, education / research institutions, and so on.
