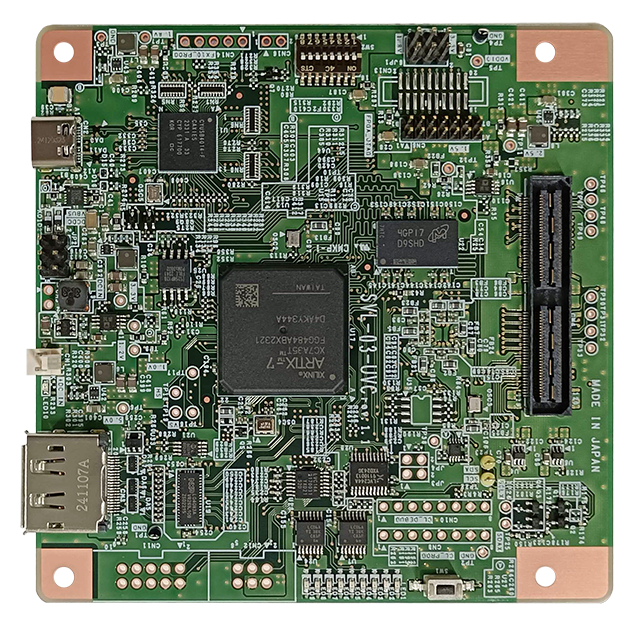

MIPI Generator
SVL-03-GEN
The MIPI Generator SVL-03-GEN is a device that can combine multiple recorded camera videos and CG images to convert them into a single cutting-edge camera video. It can perform frame composition of in-vehicle camera footage with different resolutions and frame rates.
It uses a USB3.2 Gen2 port and DisplayPort as input interfaces, and can output video signals as MIPI video signals. It supports up to 4K/30fps output, allowing for high-performance video processing.
Additionally, it is compatible with automotive use standard serializers, enabling connection with a wide range of devices, while also enabling a flexible customization of the resolution, frame rate, and blanking area.
The compact size of the main unit and its low power design allow it to operate on USB bus power alone, making it a versatile camera emulation board useful in image processing and sensor development environments.
It can output CG images from a PC as video from a camera module, making it possible to efficiently develop image processing devices even when on-site shooting is difficult.
Characteristics
- Supports MIPI CSI-2 1.5Gbps/lane

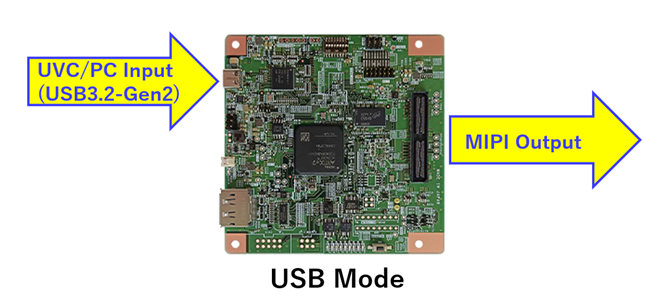

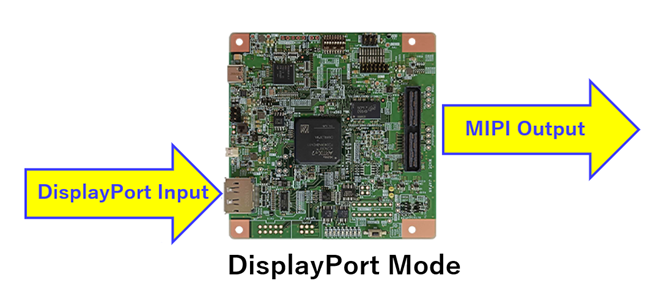

- Supports input from USB3.2-Gen2 or DisplayPort
- Supports 6Gbps band in-vehicle serializer
- Optional Feature
└ Merge MIPI video：
By using multiple SVL-03-GEN, it is possible to combine video of different sizes and output them as a single MIPI video.

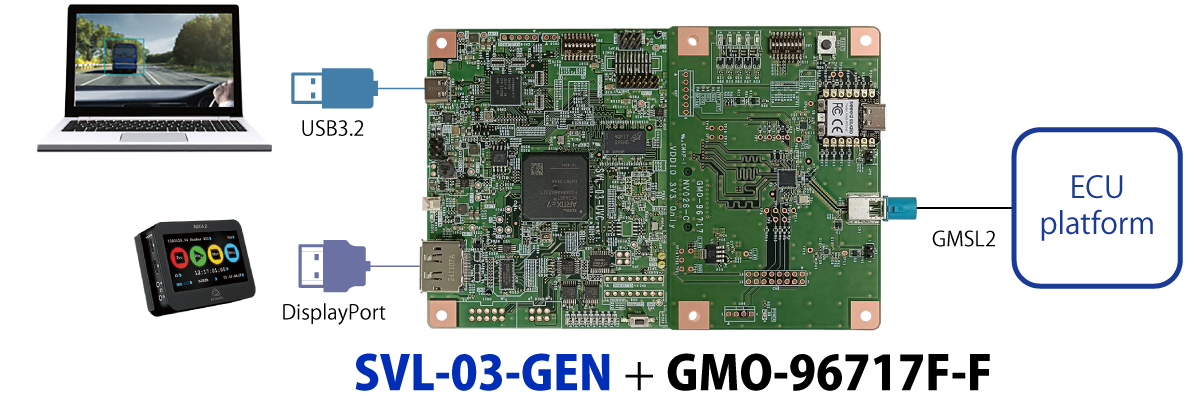

Configuration Example
Specification
| Item | Specification | Remarks | |
|---|---|---|---|
| Video Input Interface | USB3.2 Gen2 (Windows) DisplayPort 1.1a |
ー | |
| Video Output Interface | MIPI CSI-2 video signal | Supports Non-Continuous / Continuous Clock 4 data lanes + 1 clock lane |
|
| Input Resolution | Max. 8190 x 4095 pixel (USB mode) Within 3.0 Gbps (DisplayPort mode) Within 5.4 Gbps |
(DisplayPort mode) RGB24：Max. 1920 x 1080, 90fps (Customization is required for 4K, 30fps input.) Dual-Mode (DP++)：Not supported DPCP：None |
|
| Output Resolution | Max. 8190 x 4095 pixel (USB / DisplayPort mode) Within 6.0 Gbps |
(DisplayPort mode) Cropping and output of selected regions supported. |
|
| Sync Signal | Frame Start / Frame End | ー | |
| MIPI Data Lane | 1, 2, 4 lanes | 3 lane is not supported. | |
| Data Rate Per Lane | 600 ~ 1500 Mbps | Standard：Data rates lower than 600 Mbps are not supported. | |
| Clock Rate | 300 ~ 750 MHz | ー | |
| Supported Pixel Format | YUV422 8bit / RGB24 / Raw8, 10, 12, 16, 20 |
ー | |
| Other Interface | I2C | 1 channel, Frequency：100 / 200 / 400 kHz / 1MHz (hardware‑only setting) |
Voltage level follows VDDIO. |
| GPIO | 16bit, IN / OUT direction control for each bit. Direct connection to FPGA. |
Voltage level follows VDDIO. | |
| Synchronous Connector | Synchronous signal input and output. IN / OUT direction control. |
Fixed at 1.8V. | |
| Power Supply | Input Power | USB bus power / Dedicated 2pin connector | The dedicated 2pin connector supports two input‑voltage ranges (5V ~ 5.5V / 6.5V ~ 16V) selectable via jumper pins. USB bus power can be disconnected using a jumper pins. |
| Output Power | VDDIO output (1.8V, 2.5V, 3.3V) 1.2V, 3.3V, 5V output |
VDDIO：IO power supply setting. Using the common internal power supply. Current rating：1.2A (VDDIO), 1.2A (3.3V), 3.0A (5V), reserved (1.2V) |
|
| Protection Device | eFuse 6V / 4.8A (TCKE805NL) | Recovery by turning board power OFF. | |
| Other Function | Video output timing setting： pixel clock unit (including blank) |
Automatic I2C transmission at startup (ROM boot) Supports Virtual Channel 0 ~ 3 Image clipping |
|
| Interface Connector | 120 pin (QSH-060-01-L-D-A) | ー | |
| FPGA | Artix-7 (XC7A35T) CrossLink (LIF-MD6000) |
ー | |
| Frame Memory | 256 MByte (DDR3-SDRAM) | ー | |
| USB | Device Controller | Infineon EZ-USB FX10 | ー |
| Connector | USB3.2 Gen2 Type-C | ー | |
| Dimensions | Length x Width x Height = 101.6 x 101.6 x 24.0 (mm) |
Including spacer (10mm) in height. | |
| Software (Windows) | NVFilePlayer, SVLCtl, SVLUpdater | ー | |
| Supported Our Serializer Board | GMO-96717-F, etc. | ー | |
Documents
Design Documents
- SVL-03-GEN Hardware Specification (PDF)
- SVL-03 IF Schematics (PDF)
- SVLCtl Software Manual (PDF)
- NVFilePlayer Software Manual (PDF)
Full Package Download
Jetson Nano Evaluation Kit
The Jetson Nano Evaluation Kit is a kit for inputting images into the Jetson Nano. It is compatible with the SVL-03-GEN.
The Jetson Nano has a camera connector for Raspberry Pi, and the SVL-03-GEN connects to the MIPI port. A similar connection is possible with the Jetson TX2.
This method allows you to input images stored on a PC or via DisplayPort into an NVIDIA Jetson series computer.
We have also developed a connection board (NV054-F) for connecting the SVL-03-GEN to the Raspberry Pi Camera port/Jetson Nano.
This kit is not a standard product, so please contact us for details.
*The Jetson Nano and cable are not included.
Application
CMOS sensor & Camera module emulator, Picture playback, DSP Verification, Evaluation
Application Areas
Automotive / transportation equipment, medical testing / analysis / measurement, IT / information / communications, software, education / research institutions, and so on.
