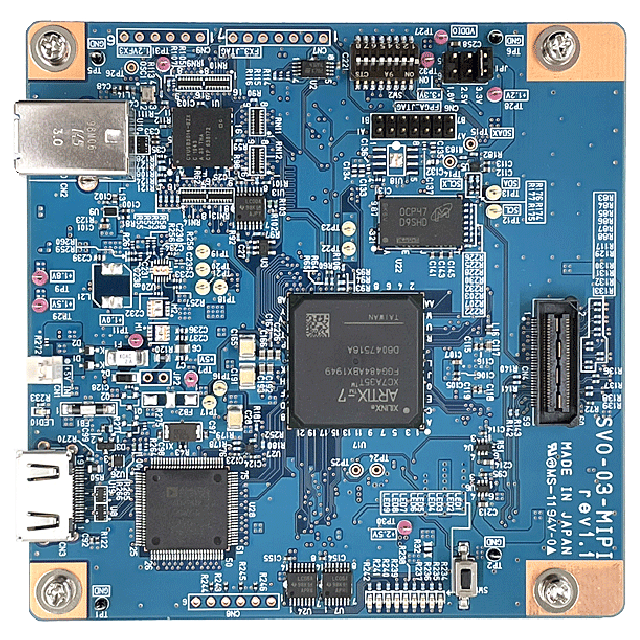

MIPI Generator
SVO-03-MIPI

The MIPI Generator SVO-03-MIPI is a camera emulation board that converts video signals from USB3.0 or HDMI to MIPI CSI-2.
Instead of using an actual CMOS image sensor, recorded videos or computer-graphics images on a PC can be output to image processing devices such as ECUs. You can freely adjust the video output timing, enabling various MIPI camera emulations.

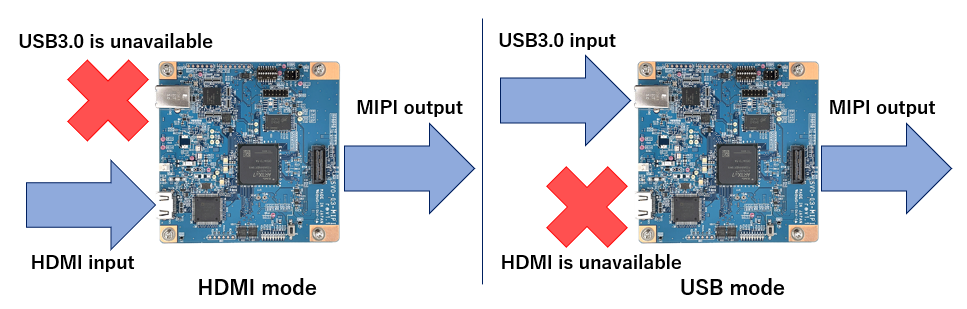

HDMI can also be used as an input interface. In this case you can adjust EDID settings as well as MIPI output timing.
This board facilitates the smooth development of image processing equipment even during the camera development, by using simulator videos.

Characteristics
Specification
Documents
Characteristics
  • Supports MIPI CSI-2 up to 1Gbps/lane
  • Input from USB3.0 or HDMI
  • Supports 4Gbps automotive serializer

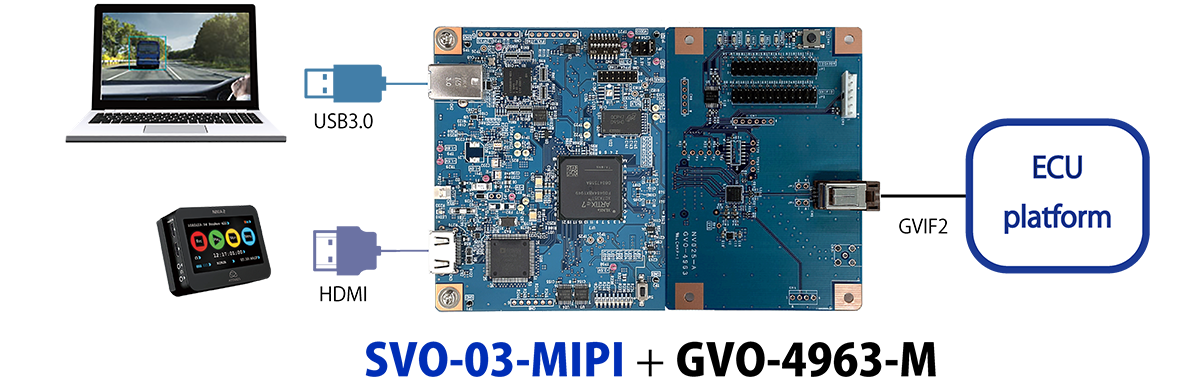

Configuration Example
Specification
Table Item Specification Remarks
Video input interface USB3.0 (Windows)
HDMI (Up to 1080P-60fps)		 Special HDMI monitors are available individually
Video output interface MIPI CSI-2 video signal Supports FPD-Link III, GMSL, GVIF2 as serializer
Input resolution Up to 8190x4095 pixel In the case of 1920x1080 (USB mode) about 80 fps
In the case of 1920x1080 (HDMI mode) about 60 fps
Output bit rate Within 4.0 Gbps In the case of 1920x1080, about 90 fps
In the case of 1280x720, about 180 fps
Supported sync signal Frame Start, Frame End ー
Number of supported data lanes 1 ～ 4 lanes ー
Data rate per lane 100 ～ 950 Mbps ー
Clock rate 50 ～ 475 MHz ー
Supported pixel formats YUV422 / RGB24 /
Raw8, 10, 12, 16, 20, 24		 ー
Other interfaces I2C Frequency：100 kHz Voltage level follows VDDIO
GPIO 16bit, IN/OUT direction control for each bit,
Direct connection to FPGA		 Voltage level follows VDDIO
Power supply Board power (input) USB bus power /
Dedicated 2pin connector (5V)		 ー
Target side power (output) VDDIO = 1.8 or 2.5 or 3.3 V /
3.3 & 1.2 V output available		 VDDIO ：IO power supply setting
Other functions Video output timing setting :
Pixel clock unit (including blank),
Multiple frame synchronous output : FrameSYNC signal
Virtual Channel and Embedded Line are available individually		 CntinuousClock / NonContinuousClock
are supported
Interface connector 60 pin (QSH-030-01-L-D-A) ー
FPGA Artix-7 (XC7A35T)
+ Meticom (MC20902)		 Meticom is an IC for MIPI D-PHY
Frame memory 256 MByte (DDR3-SDRAM) ー
USB3.0 chip Cypress EZ-USB FX3 ー
HDMI chip ADV7612 ー
Dimensions length x width x height =
101.6 x 101.6 x 25.7 (mm)		 Including spacer (10mm) in height
Attached software
Windows		 Video output software SVOGenerator ー
I2C control software SVMCtl Including SV board update application
Supported SerDes boards
of our company		 DS90UB953, CXD4963 etc., ー

【SV series common specifications】 Application software：NVCap & SVMCtl, Test pattern output function, Image clipping function

Documents
Design Documents
Full Package Download
Application

Display video signal of camera modules or CMOS sensors to DisplayPort monitor, Around view development, Simultaneous monitoring of multiple sensors.

Application Areas

Automotive / transportation equipment, medical testing / analysis / measurement, IT / information / communications, software, education / research institutions, and so on.
